Height Adjustable Toilet Lifter

The toilet lifter is available with manual or electric height adjustment. Both models are easily operated by hand control or a lever.

Item no.:

Height Adjustable Toilet Lifter

The toilet lifter is available with manual or electric height adjustment. Both models are easily operated by hand control or a lever.

Item no.:

Height adjustment

25 cm / 22 cm

Electric model

Wireless hand control

Manual model

Handle

Max. user weight

400 kg

Easy to clean

Description

The ROPOX Toilet Lifter is a small unit with high capacity and a discreet design. It lowers and lifts the user to the best seated or standing position, and the design provides plenty of space and good access in transfer situations. The manual model can be adjusted from 40-62 cm in height and is operated using a handle that is installed on the side of the unit. The electric model can be adjusted from 40-65 cm in height and is operated with a wireless hand control. The smooth surface with rounded edges is cleaning-friendly making it easy to maintain a high level of hygiene.

Accessories

Item no:

Toilet Bowl

Wall-hung toilet, choose standard or long length.

Item no:

Toilet Seat

Toilet seat is available in two variants: with or without a lid.

Item no:

Backrest

The backrest is available in two variants: a short model that is fixed and a long model that is adjustable and fits with the use of a long toilet bowl. Cannot be used in combination with a toilet seat with lid.

Item no:

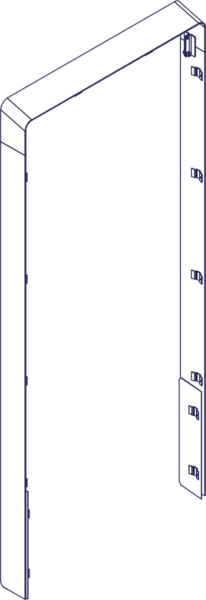

Adapter Frame

The adapter frame is available in two variants, 3 cm and 6 cm, and is mounted behind the toilet lifter if the floor drain is positioned too far from the wall.

Item no: 40-45073

Enhanced Safety For Toilet Lifter

This feature reduces the risk of pinching when the toilet moves downward.

Item no: 40-45070

Fixed Control

Fixed control ordered with the toilet lifter and placed on top of the unit.

Item no:

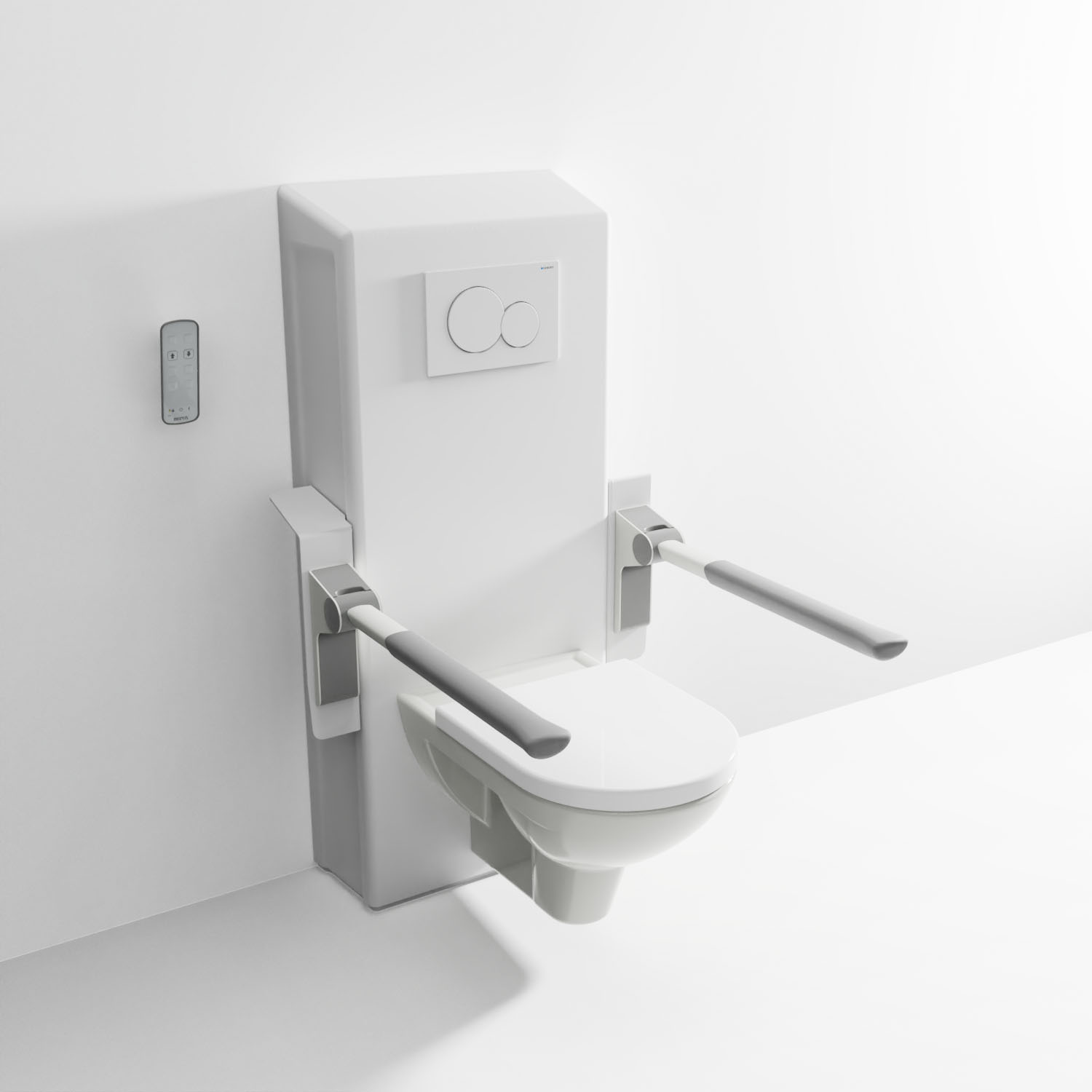

Straight Support Arms

Straight support arm is available in various lengths and 2 colors.

Item no:

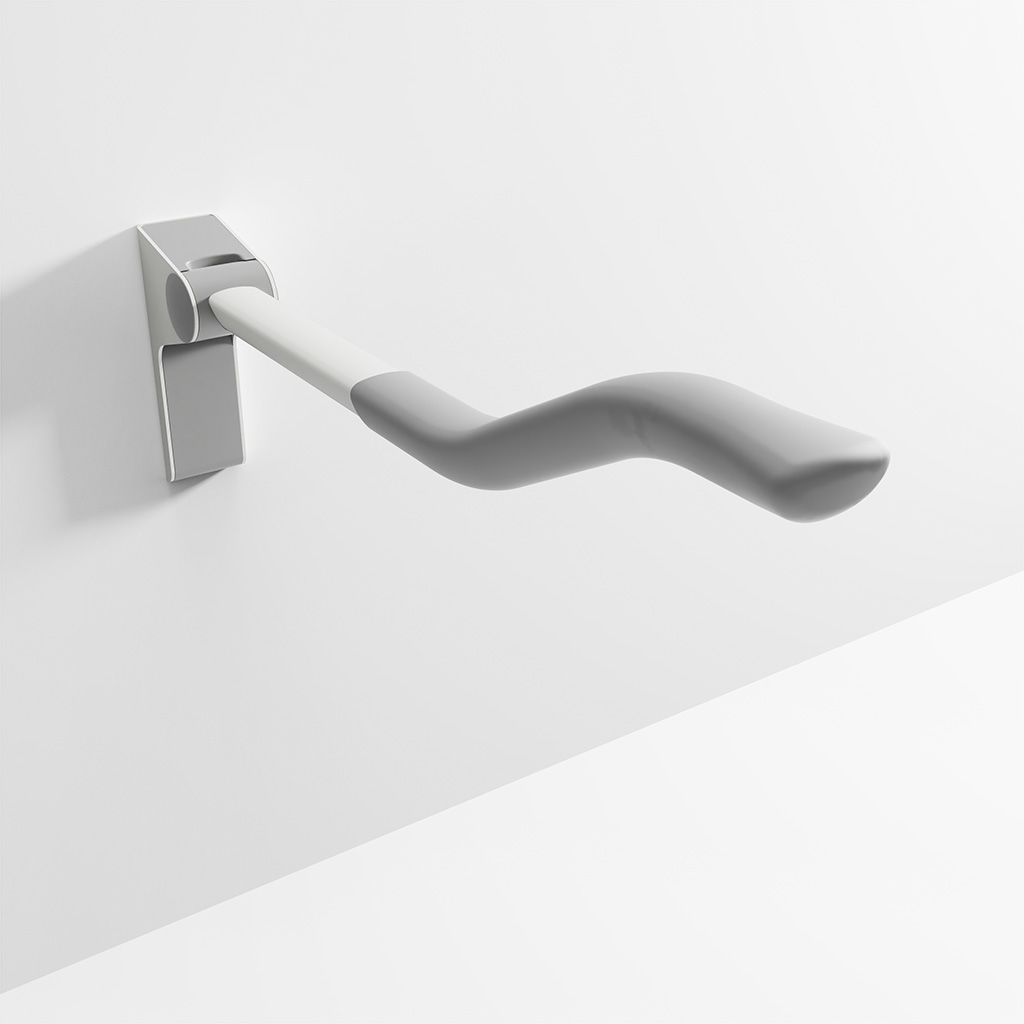

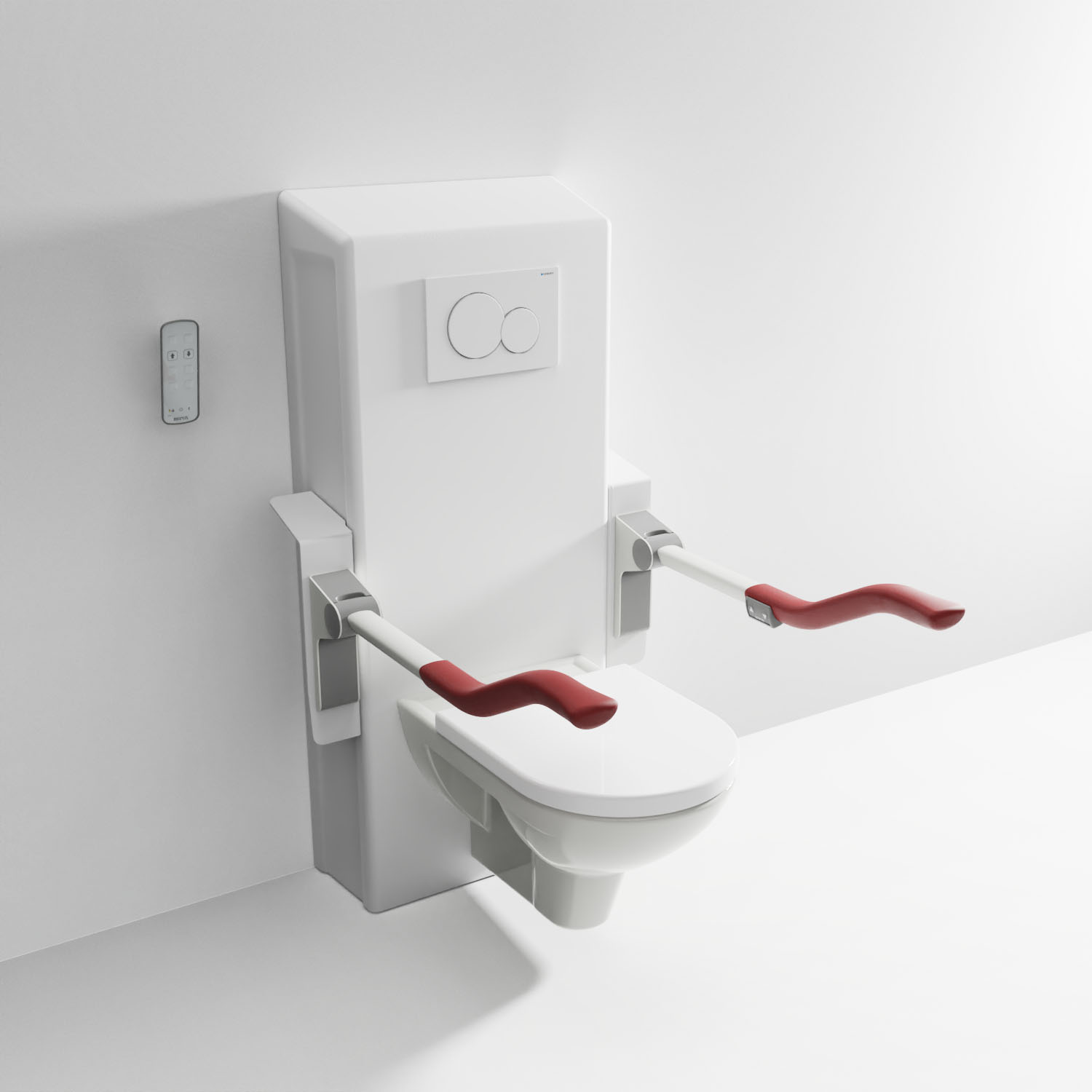

Wave Support Arms

Wave support arm is available in various lengths and 2 colors.

Item no: 40-40452

Toilet Roll Holder

Toilet roll holder to be clicked onto the support arms.

Item no: 40-40453

Control Holder For Ropox Toilet Lifter

Holder for control panel that can be clicked onto support arms.

Item no: 40-40454

Control Holder For Bidet

Holder for control panel for bidet that can be clicked onto support arms.

Item no:

Height-adjustable Brackets For Toilet Supports

Height-adjustable brackets for support arms for the toilet lifter are available in two variants: right and left.
Specifications

Power

Electric or Manual

Mounting

Wall-mounted

Max. User weight according to ISO 17966:2016

400 kg

Flushing

3/6 liters (standard) can be adjusted to 2/4.5 liters

Materials

Surface treated steel. Stainless steel. ABSPMMA plastic

Standard color

White

Electric model

Power source

Unit: Hard-wired
Hand control: Battery powered

Power supply: 100-240V ~50/60Hz

Intermittence: 2 min use / 18 min pause

Lifting speed: ≈ 8mm/s

IP rating: IPX6



Standard

Manufactured in accordance with the following standard: DS/ISO 17966:2016

CE certified

Line drawing
Downloads

Datasheet (pdf)
