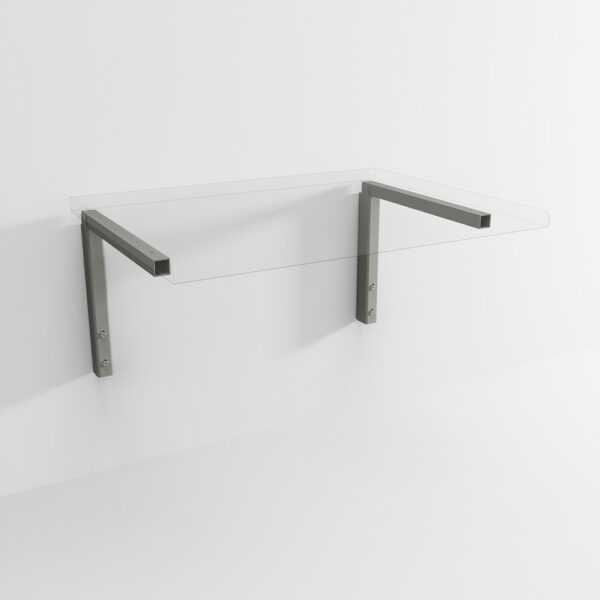

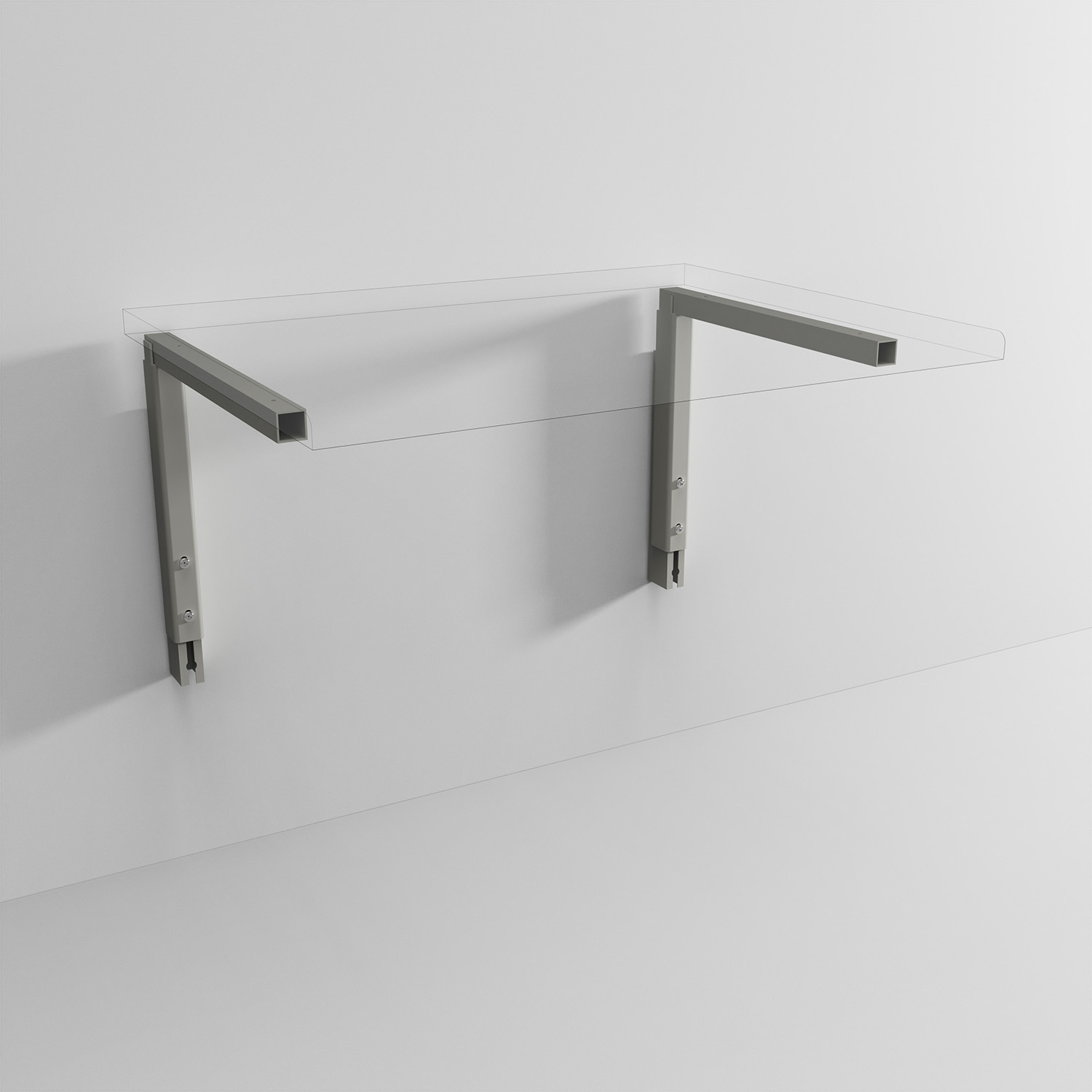

Robust brackets for occasional height adjustment of kitchen worktops.
Item no.: 30-80006
Robust brackets for occasional height adjustment of kitchen worktops.
Item no.: 30-80006
Fixed height adjustment
23 cm
Dimensions
38 cm x 3,8 x 47,1 cm
Max. load
75 kg evenly distributed
Height adjustable brackets for worktop units that make it possible to adjust the height of the worktop unit stepwise. Brackets for height adjustable countertops are totally hidden and secured. It is important that the back cover has a min. 16 mm in void between to the right and left covering. Mobile base units can be a useful way of replacing storage space in a flexible way. Height adjustable worktop units is in increments of 4.2 cm.
Item number
30-80006
Power
Manual
Fixed height adjustment
23 cm vertically up- and downwards in increments of 4.2 cm.
Configuration
One bracket consist of 1 worktop bracket and 1 wall bracket.
Maximum distance between the brackets is 80 cm.
Materials
Welded steel tubes St. 37
