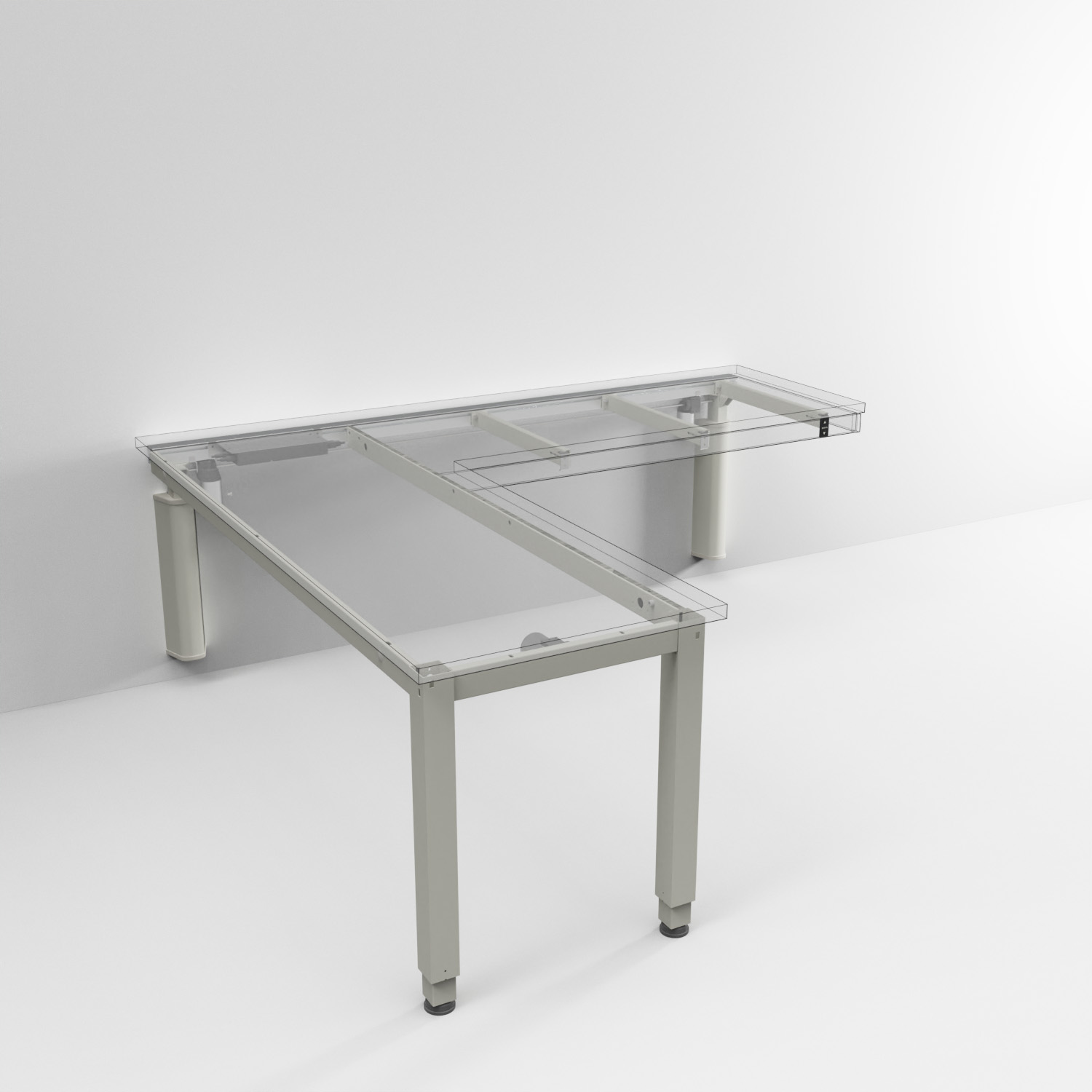

Flexi4single – Worktop Lift System

Flexi4single is an electric worktop lift system that is custom-designed according to individual requirements. It is an angled frame that only requires one load-bearing wall. The lift system is available with 30 cm electric height adjustment (65-95 cm).

Item no.:

30 cm electric height adjustment

Control switch

Max. weight: 150 kg

Angled frame

Description

Flexi4single is an electric worktop lift system that improves accessibility for users of different heights. The lifting system allows you to easily adjust the worktop to the perfect working height for both seated and standing users. It is possible to install both a sink and a hob so that the entire preparation area can be adjusted together instantly. The movement of the adjustable worktop lifting system is controlled by push button.

A Smartbox is used to connect multiple safety systems – in principle, the collision-protection devices on one or more VertiInside, Diagonal, and Flexi (Electric) units can be connected. Each system requires its own Smartbox.

Accessories

Item no: 30-67735

Cover Caps for Flexi4single

Telescopic cover caps for Flexi-legs on the Flexi4single worktop lift system.

Item no: 30-67760

Brackets For Concealment Panels

Flexible mounting brackets designed for attaching cover plates beneath the Ropox Flexi frame to conceal the underframe area. Cover plates are not supplied by Ropox.

Item no: 30-67841

Large Control

A large press pad (14 × 7 cm) for the electric variants of the Flexi-worktop lift system, designed for easy and intuitive operation.

Item no:

Safety Strips

Discreet safety strip (2.2kOhm) for electric variants of the Flexi worktops, stopping movement instantly if contact or obstruction is detected under the worktop. Available in various lengths.

Choose variant

Item no: 30-69002

Smartbox - Increased Safety

Combine all kitchen products in a safety network with the Smartbox. The system will register any activation of a safety stop in the network and stop all movements until the jamming situation has been eliminated. Compatible with FlexiElectric, Diagonal, VertiInside and 4Single Electric.

Item no:

Extension Cables For Safety Stop

Extension cables that makes it possible to route the safety stop wiring through walls, tall cabinets, or other installations—ensuring full functionality even when components are positioned farther apart. Choose variant

Item no: 30-67672

Spacer Bracket

Moves the Flexi height-adjustable frame 7 cm out from the wall to provide space for wall installations, pipes, or uneven wall surfaces. Two brackets are fitted per leg.

Item no:

Kitchen Sinks

Stainless steel sinks 40x34cm including insulation plate under the sink. Available in 2 depths, 13.5 cm and 10 cm.
Choose variant

Item no: 30-45010

Flexible Plumbing Kit

Flexible plumbing kit for kitchen sink. Includes connection hoses and a flexible drain hose. This item is compatible with Flexi worktop frames, FlexiPlus, and 4Single frame.

Item no: 30-90591

Wireless Remote Control

Wireless smartphone control of kitchen height adjustment via the Ropox Connect app. Compatible with Flexi worktop lift, Diagonal- and VertiInside upper cabinet lifts.

Specifications

Power

Electric

Height adjustment

30 cm height adjustment from 65-95 cm

Max. user weight

150 kg evenly distributed

Operation

Control switch

Mounting

Wall-mounted

Dimensions

120-300 cm (Flexi) x 100-300×60-120 cm (4single)

A drawing will always be made for the desired tabletop size.

Safety

It’s possible to buy a safety-stop. The safety-stop is placed underneath the table, at the edge, which makes it optimal for seated users.

Power source

Hard-wired

Power supply

230VAC / 2,5A / 50Hz

Intermittence

1min use / 9min break

Materials

Welded steel tubes St. 37 Aluminium alloy 606045-T6 Stainless steel spindle and various plastic components

Surface treatment / color

Powder coating in standard RAL 9010 matt white, with chromate conversion treatment.

Included

Various adjustment brackets, spacers for possible wall irregularities, and cable hangers are included

Measurements

Downloads

Video
