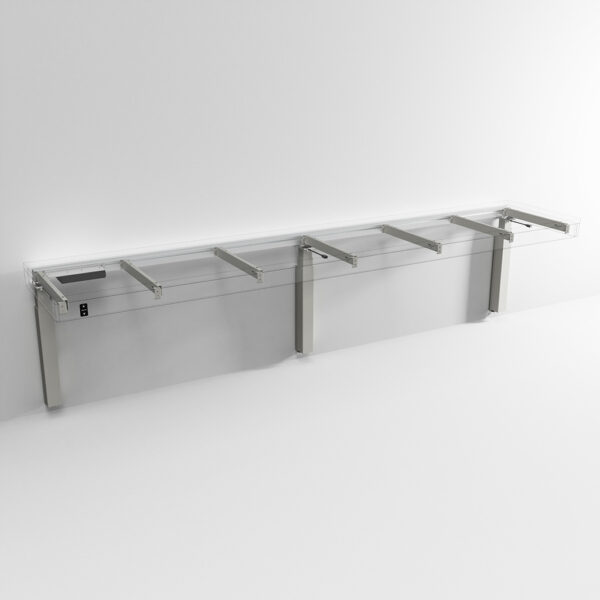

FlexiPlus – Electric Worktop Lift System

An electric height adjustable worktop lift with flexible placing of legs, few components and anti-collision.

Item no.: 30-90060 to 30-90100

FlexiPlus - Electric Worktop Lift System

FlexiPlus - Electric Worktop Lift System - Image 2

FlexiPlus - Electric Worktop Lift System - Image 3

FlexiPlus - Electric Worktop Lift System - Image 4

FlexiPlus - Electric Worktop Lift System - Image 5

FlexiPlus - Electric Worktop Lift System - Image 6

FlexiPlus - Electric Worktop Lift System - Image 7

FlexiPlus – Electric Worktop Lift System

An electric height adjustable worktop lift with flexible placing of legs, few components and anti-collision.

Item no.: 30-90060 to 30-90100

Frame shape

90° CornerStraightU-frame corner

Worktop length

Power

Electric

Height adjustment

30 cm (65-95 cm)

Operation

Control switch

Max. user weight

100 kg / 150 kg evenly distributed

Description

FlexiPlus is an electric worktop lift that comes with a 30 cm height adjustment range as standard. It is possible to programme the height adjustment to an even larger range, from 0-66 cm. FlexiPlus has quiet height adjustment, an elegant cover of mounting screws, a more flexible placing of legs and fewer components. Also, you can get a control device with a key lock or as a remote control. The built-in Sicuro anti-collision is an extra safety feature. Add the safety stop list on the front edge of the worktop to avoid trapping risk when operating the table. The Ropox Connect app allows you to set a specific height via Bluetooth.

Read more about Ropox height adjustable kitchen worktop→

Also check out Flexi – Manual / Electric worktop lift system →

Accessories

Item no: 30-67705

Supporting foot

Length 49 cm - It is possible to mount supporting feet on the legs

Item no:

Support Arms

Support arms should be chosen if the worktop depth differs from 58-62 cm.
Choose variant

Item no:

Extra Leg For FlexPlus

If an increase in lifting capacity by 50 kg is desired, the FlexiPlus requires 3 legs, which means an additional leg must be ordered.
Choose variant

Item no:

Kitchen Sinks

Stainless steel sinks 40x34cm including insulation plate under the sink. Available in 2 depths, 13.5 cm and 10 cm.
Choose variant

Item no:

Safety Strips For FlexiPlus

Safety strip (2.2kOhm) for mounting under the front edge available in various lengths; we always recommend having a safety strip on 3 sides of the tabletop. Connection cable included at 150 cm.
Choose variant

Item no: 30-45010

Flexible Plumbing Kit

Plumbing kit includes flexible connection hoses and drain.

Item no: 30-67635

Plumbing Cover

Telescopic cover for water installations, white.

Item no: 30-90530

Distance Bracket FlexiPlus

The distance brackets extend the leg 7 cm out from the wall. The worktop will remain by the wall.

Item no: 30-67760

Brackets For Concealment Panels

Flexible brackets for mounting cover plates that cover the entire area under the Flexi frame. Cover plates are not supplied by Ropox.

Item no: 30-90535

Standard Control For FlexiPlus

Control for FlexiPlus. 6x3 cm incl. cable. Comes with complete frame.

Item no: 30-93700

Reprogramming Of Travel For FlexiPlus

If limited movement is desired, this can be ordered; only the top position can be changed.

Item no: 30-90580

Double Safety for FlexiPlus

The box can interconnect multiple safety circuits from several FlexiPlus units to enhance internal pinching hazard protection.

Item no: 30-90540

Wireless Hand Control FlexiPlus

Works with adapter for Ropox App

Item no: 30-90550

Lockable control switch

Item no: 30-90570

Bracket for corner 90°-160°

If the corner of the wall is more than 90°

Specifications

Item number

30-90060 to 30-90100

Height adjustment

30 cm (65-95 cm)

Operation

Control switch

Max. user weight

60 – 240cm = 100 kg evenly distributed
245 – 300cm = 150 kg evenly distributed

Corner solutions: 150 kg, evenly distributed

Max load includes weight of tabletop and other installations.

Mounting

Wall-mounted

Dimensions (Straight frame)

Frame height: 65 cm
Support arms height: 5 cm
Worktop length: 60-300 cm
For worktop depth: Standard: 58-62 cm. Also available for 38-72 cm.

Please indicate length of worktop when ordering.

Legs and support arms

Number of legs and support arms depends on the size of worktop.

Power source

Hard-wired

Power supply

220-230V~ / 50-60Hz, 5.0A

Lifting speed

≈ 36mm/s (1.5in/s)

Intermittence

1min use / 9min break

Safety

Sicuro anti-collision feature

Ropox connect app

Incl. adapter for Ropox connect APP.

Materials

Welded steel tubes St. 37 Aluminium alloy 606045-T6 Stainless steel spindle and various plastic components

Surface treatment

Powder coated

Included

Various adjustment brackets, spacers for walls, cable bearer etc. are included.
